S.I. No. 806/2007 - Irish Aviation Authority (Designated Areas) Order, 2007


Notice of the making of this Statutory Instrument was published in

“Iris Oifigiúil” of 14th December, 2007.

The Irish Aviation Authority in pursuance of the powers conferred by Section 5 and 68 (1) of the Irish Aviation Authority Act 1993 , Number 29 of 1993, with the consent of the Minister for Transport and the Minister for Defence, hereby orders the designation of the areas of Irish Airspace in Articles 4 and 5 hereunder for use by the Defence Forces.

1. This order may be cited as the Irish Aviation Authority (Designated Areas) Order, 2007.

2. This order shall come into operation at 00:01 hours on the 13th day of March, 2008.

3. In this Order:

“the Act” means the Irish Aviation Authority Act, 1993 (No. 29 of 1993) as amended;

“designated area” (as specified in section 68 of the Act) means an airspace of defined dimensions designated by the Irish Aviation Authority with the consent of the Minister for Transport and the Minister for Defence for use by the Defence Forces. An aircraft, other than an aircraft of the Defence Forces, may not enter such an airspace without the permission of the person operating air navigation services therein;

“restricted area” means, for the purposes of this Order, airspace of defined dimensions in a designated area above the land areas or territorial waters of the state, within which the flight of civil aircraft is subject to specified restrictions;

“TOP” Maximum vertical extent (expressed as an altitude or level) of an area of airspace;

“BASE” Minimum vertical extent (expressed as the surface, an altitude or level) of an area of airspace;

“AREA database” A name attributed to a collection of data defining the boundaries of the airspace areas referred to in this Order, listed in Part I of the Schedule to the Order and described in the database interpretative material contained in Part II of the Schedule to the Order;

“EIR...” means, for purposes of this Order, a restricted area, within a designated area, individually identified by a number and the boundary of which is defined by co-ordinates and data in the AREA database as specified in Part 1 of the Schedule to the Order and as depicted, by way of illustration only, on the map in Part III of the Schedule;

“MOA...” means, for purposes of this Order, a restricted area, termed a military operational area, within a designated area, individually identified by a number and the boundary of which is defined by co-ordinates and data specified in Part 1 of the Schedule to the Order and as depicted, by way of illustration only, on the map in Part III of the Schedule;

“military operational area” means, for the purposes of this Order, a restricted area for use by aircraft of the Defence Forces within which the flight of civil aircraft may be restricted in accordance with such standing criteria as are specified by the Authority in relation thereto and published in the Aeronautical Information publication.

4. The areas EIR 15, EIR 16, EIR 22, EIR 23 are hereby designated as restricted areas with vertical and lateral extent as defined for each area by the AREA database and database interpretative material in Parts I and II of the Schedule to the Order as follows:

— the lateral extent within the area boundaries is defined in the AREA database, for each area as appropriate, by one or more of the following:

a:—

— Point Sequence,

— Point Name/Description,

— Latitude,

— Longitude,

— Line Type,

— Centre Latitude,

— Centre Longitude, and

— Radius (NM).

— the vertical extent is defined from BASE up to and including TOP for each area by data elements in the AREA database.

5. The following airspace areas MOA 3, MOA 4, MOA 5 are hereby designated as military operational areas with vertical and lateral extent as defined for each area by the AREA database and database interpretative material in Parts I and II of the Schedule to the Order, as follows:

— the lateral extent within the area boundaries is defined in the AREA database, for each area as appropriate, by one or more of the following:

a:

— Point Sequence,

— Point Name/Description,

— Latitude,

— Longitude,

— Line Type,

— Centre Latitude,

— Centre Longitude, and

— Radius (NM).

— the vertical extent of each area is defined from BASE up to and including TOP for each area by data elements in the AREA database.

6. The Air Navigation (Designated Areas) Order, 2002 ( S.I. No. 140 of 2002 ) is hereby revoked.

SCHEDULE AREA DATABASE AND DATABASE INTERPRETATIVE MATERIAL

Part 1

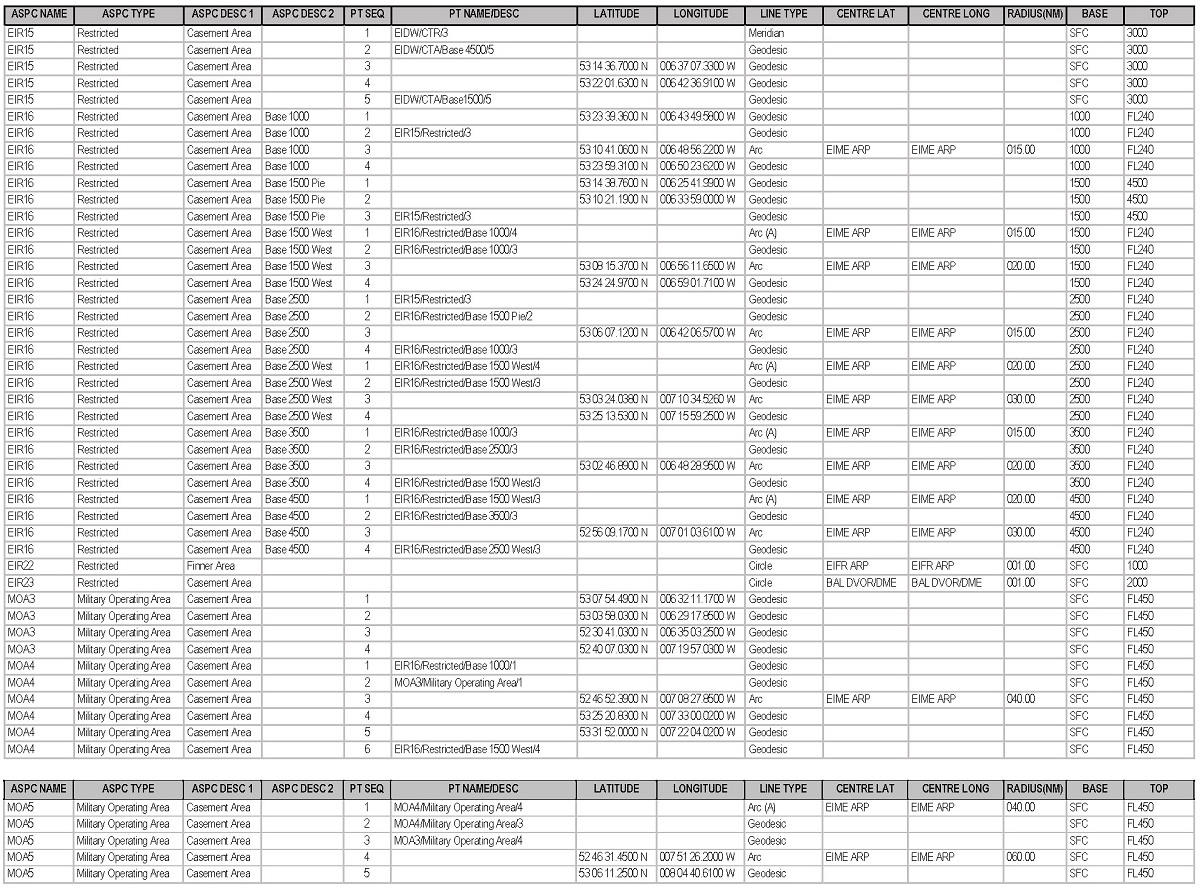

AREA DATABASE

/images/en.si.2007.0806.0001.jpg

Part II

AREA DATABASE INTERPRETATIVE MATERIAL

AREA Database Description:

The AREA database contains a listing of data defining the boundaries of the Irish Airspace Organisation components.

AREA Database Structure:

1. (a) The database contains blocks of airspace. Each block is identified uniquely using the column identifiers ASPC NAME, ASPC TYPE, ASPC DESC 1 and ASPC DESC 2.

(b) The boundaries of each block are defined by a sequence of points, one at each apex, joined by a specific line type.

(c) Each record contains the point name/description or geographic co-ordinates, representing the sequence point, together with the line type joining that point to the subsequent sequence point contained in the following record.

(d) The final sequence point for each block is joined to the first sequence point.

(e) Where a line type ARC or Circle is given, then data representing the centre and radius are included in the record.

(f) Where a record contains a point common to another record within the database, such point is identified in the field under the column identifier “PT NAME/DESC” by reference to the appropriate field entries of the common point’s record, separated by a forward slash. This ensures that co-ordinates of a point are not entered into the database more than once.

2. All geographic co-ordinates are those of the World Geodetic System, 1984 (WGS-84).

3. A map is attached, for illustrative purposes only, showing Designated Airspace and depicting a plan of the Restricted Areas and Military Operational Areas identified by ASPC NAME and ASPC DESC 2 in the AREA database.

AREA Database Listing of Column Identifiers

The listing of data in the AREA database contains the following column identifier abbreviations:

Abbreviation

Column Identifier

ASPC NAME

Airspace Name

ASPC TYPE

Airspace Type

ASPC DESC 1

Airspace Description one

ASPC DESC 2

Airspace Description two

PT SEQ

Point Sequence

PT NAME/DESC

Point Name/Description

CENTRE LAT

Centre Latitude

CENTRE LONG

Centre Longitude

RADIUS (NM)

Radius in Nautical Miles

AREA Database Data Element Abbreviation Description

(1) Line Type

Line Type abbreviations for data elements within the AREA Database include the following descriptions: Line Type

Description

ARC

ARC of small circle — clockwise

ARC (A)

ARC of small circle — anticlockwise

Meridian

Meridian of Longitude

Circle

Small circle

(2) Other Elements

Abbreviations for other data elements within the AREA database include the following descriptions:

Data Element

Description

EIFR ARP

Finner Camp Aerodrome Reference Point

EIME ARP

Casement Aerodrome Reference Point

SFC

Surface

FL

Flight Level

Data Element Values

Values for data elements within the AREA Database include the following:

Data Element

Latitude

Longitude

EIME ARP

53 18 10.7710N

006 27 19.4621W

EIFR ARP

54 29 31.6049N

008 14 40.0048W

BAL DVOR/DME

53 17 59.6170N

006 26 52.0036W

EIDW/CTA/Base 4500/5

53 14 39.2400N

006 21 30.3500W

EIDW/CTA/Base 1500/5

53 20 34.0400N

006 30 56.3700W

EIDW/CTR/3

53 20 00.0000N

006 21 30.3500W

Part III

MAP

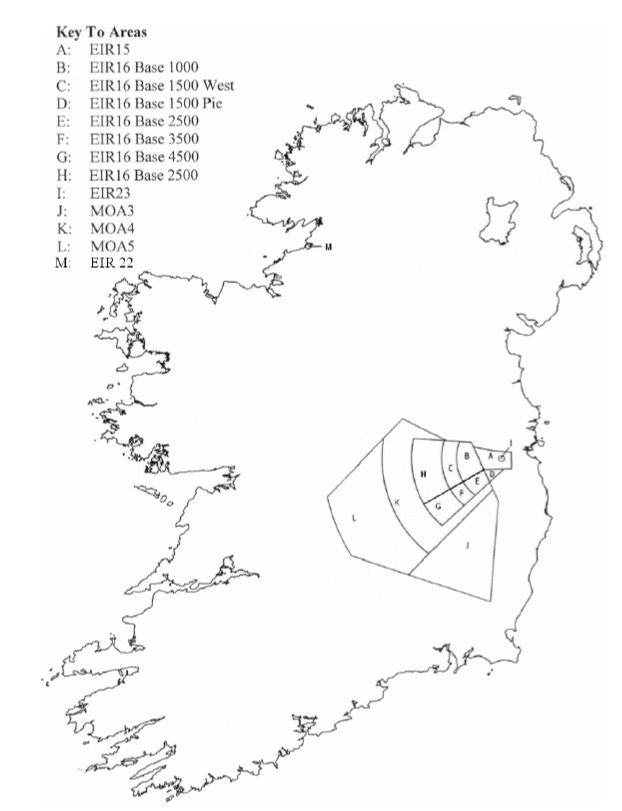

Part III — MAP (For illustrative purposes)

/images/en.si.2007.0806.0002.jpg

/images/ls

GIVEN under the common seal of the Irish Aviation Authority,

12 December 2007

FRANK COWNWAY.

Director

Present when the common seal of the Irish Aviation Authority was affixed hereto.

/images/ls

GIVEN under the common seal of the Irish Aviation Authority,

12 December 2007

DONAL DOWNING.

Director

EXPLANATORY NOTE

(This note is not part of the Order and does not purport to be a legal interpretation).

1. This Order relates to the designation of certain amended areas of airspace for use by theDefence Forces.

2. This Order revokes and re-enacts with modifications and additions the Irish Aviation Authority (Designated Areas) Order, 2002 ( S.I. No. 140 of 2002 ).

3. This Order provides for:

— an amendment to the lateral and vertical limits of the existing Restricted Area EIR 16 (to accommodate revised flight procedures for Operational Air Traffic at Casement Aerodrome Co. Dublin and revised Civil/Military Air Traffic Control Coordination procedures);

— prescribing lateral limits for all designated areas based on co-ordinates in the World Geodetic System of 1984.
