S.I. No. 369/1984 - Merchang Shipping (Tonnage) Regulations, 1984.


S.I. No. 369 of 1984.

MERCHANG SHIPPING (TONNAGE) REGULATIONS, 1984.

ARRANGEMENTS OF REGULATIONS

PART I

GENERAL

1. Citation, commencement and revocation.

2. Definitions.

PART II

APPLICATION, ASCERTAINMENT OF TONNAGE AND CERTIFICATION FOR NEW SHIPS AND CERTAIN EXISTING SHIPS OF 24 METRES IN LENGTH AND OVER.

3. Application of Part II.

ASCERTAINMENT OF TONNAGE.

4. Method of measurement.

5. Calculation of volumes.

6. Gross tonnage.

7. Net tonnage.

8. Miscellaneous tonnages.

CERTIFICATION.

9. Issue of certificates.

10. Cancellation of certificates.

11. Change of net tonnage necessitating issue of certificate.

PART III

APPLICATION, ASCERTAINMENT OF TONNAGE AND CERTIFICATION FOR ALL SHIPS, INCLUDING PLEASURE YACHTS, OF LESS THAN 24 METRES IN LENGTH.

12. Application of Part III.

PART IV

APPLICATION, ASCERTAINMENT OF TONNAGE AND CERTIFICATION FOR EXISTING SHIPS OF 24 METRES IN LENGTH AND OVER.

13. Application of Part IV.

PART V

FOREIGN SHIPS WHILST WITHIN THE STATE OR THE TERRITORIAL WATERS THEREOF.

14. Acceptance of foreign tonnage certificates.

15. Ascertainment of tonnage and certification.

PART VI

INTERIM SCHEME FOR TONNAGE MEASUREMENT FOR CERTAIN SHIPS.

16. Application of Part VI.

FIRST SCHEDULE

Excluded spaces as defined in Regulation 2.

SECOND SCHEDULE

Coefficients K1 and K2 referred to in Regulations 6, 7 and 8.

THIRD SCHEDULE

Form of International Tonnage Certificate (1969).

FOURTH SCHEDULE

Tonnage Regulations applicable to ships referred to in Parts III, IV, V and VI.

Definitions.

PART I

Para 1 Ascertainment of tonnage.

Para 2 Method of measurement.

Para 3 Certificates of Irish tonnage.

PART II

A. GROSS TONNAGE

Para 4 Components of gross tonnage.

Para 5 Underdeck tonnage.

Para 6 Tonnage of hatchways.

Para 7 Closed in spaces on or above the upper deck not to be included in gross tonnage.

B. REGISTER TONNAGE.

Para 8 Ascertainment of register tonnage.

Para 9 Space to be deducted.

Para 10 Allowance for propelling machinery space.

PART III

MODIFIED AND ALTERNATIVE TONNAGES AND TONNAGE MARKS

Para 11 Modified gross and register tonnage of ships with certain freeboards.

Para 12 Alternative tonnages.

PART IV

Paras. 13-15—Pleasure yachts under 45 feet in length.

PART V

Para 16—Space for the purposes of section 93 of the Principal Act.

APPENDIX 1 TO THE FOURTH SCHEDULE

RULE I MEASUREMENT OF TONNAGE.

RULE II MEASUREMENT OF TONNAGE BELOW THE UPPER DECK WHERE MEASUREMENT IN ACCORDANCE WITH RULE I IS IMPRACTICAL.

APPENDIX 2 TO THE FOURTH SCHEDULE

Limitation of height of open floors and double bottoms, and of depths of frames and side brackets, for purposes of measurement of underdeck tonnage.

APPENDIX 3 TO THE FOURTH SCHEDULE

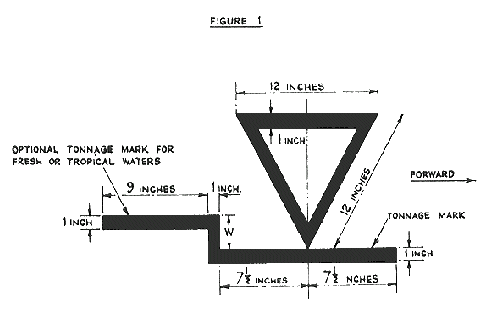

Tonnage mark.

APPENDIX 4 TO THE FOURTH SCHEDULE

Position of tonnage marks.

APPENDIX 5 TO THE FOURTH SCHEDULE

Pleasure yachts under 45 feet in length — ascertainment of tonnage.

S.I. No. 369 of 1984.

MERCHANT SHIPPING (TONNAGE) REGULATIONS, 1984.

I, JAMES MITCHELL, Minister for Communications, in exercise of the powers conferred on me by section 91 of the Mercantile Marine Act, 1955 (No. 29 of 1955), and the Ministers and Secretaries (Amendment) Act, 1983 (No. 40 of 1983), hereby make the following Regulations:—

PART IGENERAL

1 ..

1. (1) These Regulations may be cited as the Merchant Shipping (Tonnage) Regulations, 1984 and shall come into operation on 31st day of March, 1985.

(2) The Merchant Shipping (Tonnage) Regulations, 1967 ( S.I. No. 213 of 1967 ), are hereby revoked.

2 ..

2. In these Regulations, unless the context otherwise requires:

"Administration" means the Government of the State whose flag the ship is flying;

"amidships" means the mid point of the length;

"breadth" means the maximum breadth of the ship, measured amidships to the moulded line of the frame in a ship with a metal shell and to the outer surface of the hull in a ship with a shell of any other material;

"cargo spaces" means enclosed spaces which are included in the computation of gross tonnage and are appropriated for the transport of cargo to be discharged from the ship and which are permanently marked with the letters "CC" (cargo compartment), such letters being not less than 100 millimeters in height and so positioned as to be readily visible;

"Certifying Authority" means the Minister or any person authorised by the Minister for the purpose of these Regulations;

"Contracting Government" means the Government of a country which has accepted the International Convention on Tonnage Measurement of Ships, 1969;

"Convention" means the International Convention on Tonnage Measurement of Ships, 1969;

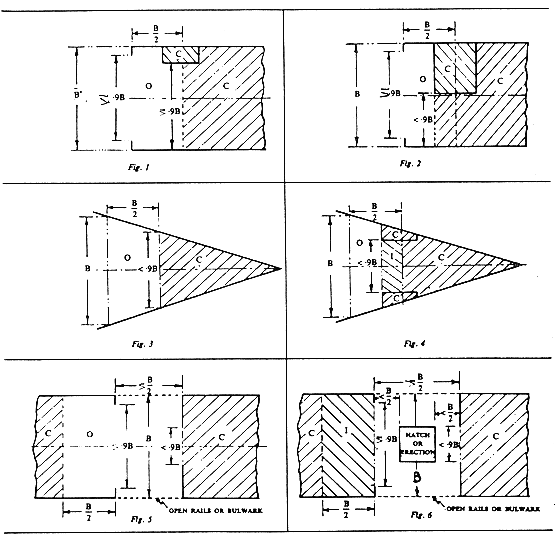

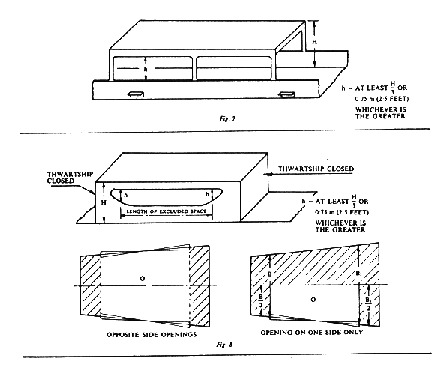

"enclosed spaces" means all those spaces, other than excluded spaces, which are bounded by the ship's hull, by fixed or portable partitions or bulkheads, or by decks or coverings other than permanent or moveable awnings. No break in a deck, nor any opening in the ship's hull, in a deck or in a covering of a space, or in the partitions or bulkheads of a space, nor the absence of a partition or bulkhead, shall preclude a space from being included in the enclosed spaces; and for the purposes of this definition "excluded spaces" means any of the following spaces:

(a) that part of an enclosed space within an erection opposite an end opening and extending from the opening to an athwartship line at a fore and aft distance from the opening equal to half the breadth of the deck at the line of the opening. Such end opening shall have a breadth equal to or greater than 90 per cent of the breadth of the deck at the line of the opening and shall extend from deck to deck or to a curtain plate of a depth not exceeding by more than 25 millimetres the depth of the adjacent deck beams, as specified in figure 1 of the First Schedule hereto;

provided that:

(i) where at any point the width of the enclosed space, because of any arrangement except convergence of the outside plating, as specified in figure 3 of the First Schedule hereto, becomes less than 90 per cent of the breadth of the deck at the line of the opening, the excluded space shall extend only to an athwartship line intersecting that point, as specified in figures 2 and 4 of the First schedule hereto;

(ii) where the opposite ends of two enclosed spaces are separated by a gap, which is completely open except for bulwarks or open rails and of fore and aft length less than half the least breadth of the deck at the gap, then no part of the enclosed spaces shall be excluded, as specified in figures 5 and 6 of the First Schedule hereto;

(b) a space under an overhead deck covering open to the sea and weather, having no other connection on the exposed sides with the body of the ship than the stanchions necessary for its support. In such a space, open rails or a bulwark and curtain plate may be fitted or stanchions fitted at the ship's side, provided that the distance between the top of the rails or the bulwark and the curtain plate is not less than 0.75 metres or one-third of the height of the space, whichever is the greater, as specified in figure 7 of the First Schedule hereto;

(c) a space in a side-to-side erection between opposite side openings not less in height than 0.75 metres or one-third of the height of the erection, whichever is the greater. If the opening in such an erection is provided on one side only, the space to be excluded from the volume of enclosed spaces shall be limited inboard from the opening to a maximum of one half of the breadth of the deck in way of the opening, as specified in figure 8 of the First Schedule hereto;

(d) a space in an erection immediately below an uncovered opening in the deck overhead, provided that such an opening is exposed to the weather and the space excluded from enclosed spaces is limited to the area of the opening, as specified in figure 9 of the First Schedule hereto;

(e) a recess in the boundary bulkhead of an erection which is exposed to the weather and the opening of which extends from deck to deck without means of closing, provided that the interior width is not greater than the width at the entrance and its extension into the erection is not greater than twice the width of its entrance as specified in figure 10 of the First Schedule hereto;

(f) notwithstanding the provisions of subparagraphs (a) to (e) inclusive, any space listed in those subparagraphs which fulfills at least one of the following conditions shall be treated as an enclosed space:—

(i) the space is fitted with shelves or other means for securing cargo or stores;

(ii) the openings are fitted with any means of closure;

(iii) the construction provides any possibility of such openings being closed;

"existing ship" means a ship which is not a new ship;

"length" means the greater of the following distances:

(a) the distance between the fore side of the stem and the axes of the rudder stock; or

(b) a distance measured from the fore side of the stem, being 96 per cent of the distance between that point and the aft side of the stern,

the said points and measurements being taken respectively at and along a waterline at 85 per cent of the least moulded depth of the ship. In the clase of a ship having a rake of keel the waterline shall be parallel to the designed waterline;

"Load Line Rules" means the Merchant Shipping (Load Line) Rules 1968 ( S.I. No. 205 of 1968 ), as amended by the Merchant Shipping (Load Line) (Amendment) Rules, 1971 ( S.I. No. 71 of 1971 ) and includes in relation to any ship not registered in the State any corresponding rules of the country in which the ship is registered;

"the Minister" means the Minister for Communications;

"moulded depth" means;

(a) the vertical distance measured from the top of the keel to the underside of the upper deck at side. In wood and composite ships the distance is to be measured from the lower edge of the keel rabbet. Where the form at the lower part of the midship section is of a hollow character or where thick garboards are fitted, the distance is to be measured from the point where the line of the flat of the bottom continued inwards cuts the side of the keel;

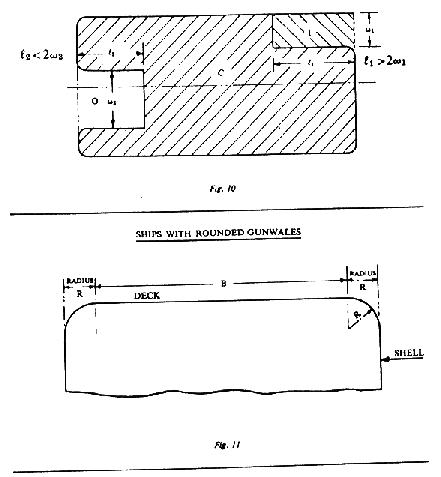

(b) in ships having rounded gunwales, the moulded depth shall be measured to the point of intersection of the moulded lines of the deck and side shell plating, the lines extending as though the gunwales were of angular design;

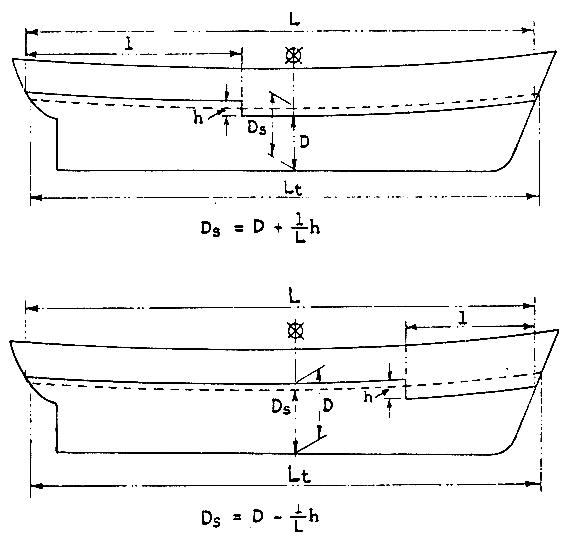

(c) where the upper deck is stepped and the raised part of the deck extends over the point at which the moulded depth is to be determined, the moulded depth shall be measured to a line of reference extending from the lower part of the deck along a line parallel with the raised part; for the purposes of this definition: (i) "upper deck" means the uppermost complete deck exposed to weather and sea, which has permanent means of weathertight closing of all openings in the weather part thereof, and below which all openings in the sides of the ship are fitted with permanent means of watertight closing. In a ship having a stepped upper deck, the lowest line of the exposed deck and the continuation of that line parallel to the upper part of the deck is taken as the upper deck; and (ii) "weathertight" means that in any sea conditions water will not penetrate into the ship;

"moulded draught" means:

(a) for ships assigned load lines in accordance with the Load Line Rules, the draught corresponding to the Summer Load Line (other than timber load lines);

(b) for passenger ship, the draught corresponding to the deepest subdivision load line assigned in accordance with the Merchant Shipping (Passenger Ship Construction) Rules, 1983 ( S.I. No. 300 of 1983 );

(c) for ships to which no load line has been assigned but the draught of which is restricted by the Minister, the maximum permitted draught;

(d) for other ships, 75 per cent of the moulded depth amidships;

"new ship" means a ship the keel of which was laid, or which was at a similar stage of construction, on or after 18th July, 1982; and for the purpose of this definition "a similar stage of construction" means the stage at which:

(a) construction identifiable with a specific ship begins and

(b) assembly of that ship has commenced comprising at least 50 tonnes or one per cent of the estimated mass of all structural material whichever is the less;

"passenger" means any person carried in a ship except:

(a) a person employed or engaged in any capacity on board the ship in the business of the ship;

(b) a person on board the ship either in pursuance of the obligation laid upon the master to carry shipwrecked, distressed or other persons, or by reason of any circumstances that neither the master nor the owner nor the charterer (if any) could have prevented; and

(c) a child under one year of age;

"oil tanker" means a ship constructed or adapted to carry oil in bulk in its cargo spaces and includes combination carriers; for the purposes of this definition "combination carrier" means a ship designed to carry either oil or solid cargoes in bulk;

"pleasure yacht" means a vessel primarily used for sport or recreation;

"the Principal Act" means the Merchant Shipping Act, 1894 ;

"surveyor" means a surveyor appointed by a Certifying Authority.

PART IIAPPLICATION, ASCERTAINMENT OF TONNAGE AND CERTIFICATION FOR NEW SHIPS AND CERTAIN EXISTING SHIPS OF 24 METRES IN LENGTH AND OVER

3 Application of Part II.

3. (1) This Part and the First, Second and Third Schedules hereto shall apply to the following ships registered or to be registered in the State under the Mercantile Marine Act, 1955 (No. 29 of 1955), or, in the case of Irish fishing boats, under the Mercantile Marine Act, 1955 and Part IV of the Principal Act, being ships of 24 metres in length or over:

( a ) new ships;

( b ) existing ships to which Regulation 13 (1) of these Regulations would otherwise apply but which undergo alterations or modifications which result in a substantial variation in their existing gross tonnage;

( c ) existing ships, if the owner so requests;

( d ) all ships with effect from the 18th day of July, 1994;

(2) Existing ships the tonnage of which has once been determined under this Part pursuant to a request of the owner under paragraph (1) (c) above shall not subsequently have their tonnages determined in accordance with Part IV of these Regulations.

Ascertainment of Tonnage

4 Method of Measurement.

4. (1) The owner and the master of a ship to be measured shall make it available for measurement by a surveyor and afford all necessary facilities for its survey and measurement and shall produce such plans, drawings, specifications and other documents relating to the ship that the surveyor may require for his use or retention.

((2) The gross and net tonnages shall be determined in accordance with Regulations 6 and 7 of these Regulations provided that in the case of novel types of craft with constructional features which render the application of the provisions of these Regulations unreasonable or impracticable, the gross and net tonnages shall be determined as required by the Minister.

(3) All measurements used in the calculations of volumes shall be taken and expressed in metres to the nearest centimetre.

(4) Gross and net tonnages shall be expressed as whole numbers, decimals being rounded off downwards.

5 Calculation of Volumes.

5. (1) All volumes included in the calculation of gross and net tonnages shall be measured, irrespective of the fitting of insulation or the like, to the inner side of the shell or structural boundary plating in ships constructed of metal, and to the outer surface of the shell or to the inner side of the structural boundary surfaces in ships constructed of any other material.

(2) Volumes of appendages shall be included in the total volume.

(3) Volumes of spaces open to the sea shall be excluded from the total volume.

(4) The method and accuracy of the calculations shall be to the satisfaction of the Minister and shall be sufficiently detailed to facilitate checking.

6 Gross Tonnages.

6. The gross tonnage (GT) of a ship shall be determined by the following formula: GT=K1V

where: V = total volume of all enclosed spaces of the ship in cubic metres,

K1 = 0.2+0.02 log10 V or as specified in the Second Schedule.

7 Nett Tonnages.

7. The net tonnage (NT) of a ship shall be determined by the following formula:

/images/si369y84p0013a.gif

where:

Vc = total volume of cargo spaces in cubic metres

K2 = 0.2+0.02 log10 Vc or as specified in the Second Schedule

/images/si369y84p0013b.gif

where

GT = gross tonnage calculated in accordance with Regulation 6

D = moulded depth amidship in metres

d = moulded draught amidships in metres

N1 = number of passengers in cabins with not more than 8 berths

N2 = number of other passengers

N1+N2 = Total number of passengers the ship is permitted to carry as indicated in the ship's passenger certificate.

Provided that:

( a ) the factor

/images/si369y84p0014a.gif

shall not be taken as greater than unity;

( b ) the term

/images/si369y84p0014b.gif

shall not be taken as less than 0.25 GT;

( c ) N1 and N2 shall be taken as zero when N1+N2 is less than 13;

( d ) NT shall not be taken as less than 0.30 GT.

8 Miscellaneous Tonnages.

8. (1) Segregated ballast oil tanks:

Where segregated ballast tanks complying with Regulation 13 of Annex 1 of the International Convention for the Prevention of Pollution from Ships, 1973, as modified by the Protocol of 1978 relating to that Convention are provided in oil tankers, an entry may be made on the International Tonnage Certificate (1969) indicating the total tonnage of these tanks. The tonnage of such segregated ballast tanks shall be calculated according to the following formula:

K1 x Vb

where: K1 = 0.2+0.02 log10 V or as specified in the Second Schedule.

V = the total volume of all enclosed spaces of the ship in cubic metres.

Vb = the total volume of segregated ballast tanks in cubic metres measured in accordance with Regulation 5.

Deck Cargoes

(2) Where cargo is carried in any uncovered space on deck the tonnage of the space so occupied to be taken into account for the purpose of section 93 of the Mercantile Marine Act, 1955 , (payment of dues where goods are carried in spaces not forming part of the gross or net tonnages) shall be determined by the formula:

Deck Cargo Tonnage = 0.353 (Mean length x mean breadth x mean height).

CERTIFICATION

9 Issue of Certificates.

9. The Certifying Authority shall, upon receipt of the appropriate fee, issue to the owner of every ship registered in the State, the tonnages of which have been ascertained in accordance with Regulations 6 and 7 of these Regulations, an International Tonnage Certificate (1969) in the form set out in the Third Schedule to these Regulations, certifying the tonnages of the ship and containing the following particulars:

( a ) the name, port of registry and official number of the ship;

( b ) its length, breadth and moulded depth;

( c ) its gross and net tonnages;

( d ) the date on which the keel was laid or the ship was at a similar stage of construction or date on which the ship underwent alterations or modifications of a major character.

10 Cancellation of Certificates.

10. (1) Where alterations are made in the arrangement, construction, capacity, use of spaces, total number of passengers the ship is permitted to carry under the terms of the ship's passenger certificate, assigned loadline, or permitted draught of the ship such as would cause an increase in the gross or net tonnage, the existing International Tonnage Certificate (1969) shall cease to be valid and shall be delivered up to and cancelled by the Certifying Authority.

(2) When a ship is transferred from the Irish Register the International Tonnage Certificate (1969) shall cease to be valid except when the transfer is to the Administration of a state which is a Contracting Government in which case the certificate may remain in force for a period not exceeding 3 months or until the new Administration issues another International Tonnage Certificate (1969) whichever is the earlier. The Certifying Authority shall transmit to the Administration of that Government as soon as possible after the transfer has taken place a copy of the certificate carried by the ship at the time of transfer and a copy of the relevant tonnage calculations.

11 Tonnage of nett tonnage necessitating issue of certificate.

11. (1)When alterations in the values of V, Vc, d, N1 or N2 as defined in Regulations 6 and 7 result in an increase in the net tonnage a new International Tonnage Certificate (1969) incorporating the increased net tonnage shall be issued.

(2) In the case of a passenger ship assigned subdivision load lines in accordance with the Merchant Shipping (Passenger Ship Construction) Rules, 1983 ( S.I. No. 300 of 1983 ), and load lines in accordance with the Merchant Shipping (Load Line) Rules, 1968 ( S.I. No. 205 of 1968 ), only one net tonnage shall be applied. Where the draught corresponding to the Summer load line differs from that corresponding to the deepest subdivision load line the net tonnage shall be the greater of the two values determined in accordance with Regulation 7 by applying the differing draughts.

(3) ( a ) Subject to subparagraph (b) below, where alterations in the values of V, Vc, d, N1 or N2 as defined in Regulations 6 and 7 or changes in the position of the load lines result in a decrease in the net tonnage, a new International Tonnage Certificate (1969) incorporating the decreased net tonnage shall not be issued until 12 months have elapsed from the date on which the current certificate was issued.

( b ) A new International Tonnage Certificate (1969) may be issued when:

(i) a ship which was registered outside the State is re-registered in the State;

(ii) a ship undergoes alterations or modifications of a major character, such as the removal of a superstructure, which requires an alteration of the assigned load line, or

(iii) the ship is a passenger ship employed in special trades for the carriage of large numbers of special trade passengers, such as the pilgrim trade.

PART IIIAPPLICATION, ASCERTAINMENT OF TONNAGE AND CERTIFICATION FOR ALL SHIPS, INCLUDING PLEASURE YACHTS, OF LESS THAN 24 METRES IN LENGTH

12 Application of Part III.

12. (1) This Part shall apply to all ships of less than 24 metres in length, including pleasure yachts to be registered under the Mercantile Marine Act, 1955 , and fishing boats to be registered under the Mercantile Marine Act, 1955 , and Part IV of the Principal Act.

(2) This Part shall not apply to Irish fishing boats of less than 24 metres in length registered under Part IV only of the Principal Act, the tonnages of which shall continue to be ascertained in accordance with the provisions of the Merchant Shipping (Registry, Lettering and Numbering of Fishing Boats) (Regulations) Order, 1927 (S.R. & O 80 of 1927).

(3) Ships, pleasure yachts and fishing boats to which this Part applies shall have their tonnages ascertained in accordance with the provisions of the Fourth Schedule, and Appendices 1 to 5 thereto to these Regulations.

PART IVAPPLICATION, ASCERTAINMENT OF TONNAGE AND CERTIFICATION FOR EXISTING SHIPS, OF 24 METRES IN LENGTH AND OVER UNTIL 17TH JULY 1994.

13 Application of Part IV.

13. (1) This Part shall apply to existing ships of 24 metres and over registered or to be registered in the State.

(2) This Part shall not apply to existing ships referred to in Regulation 3 (1) (b) and (c) of these Regulations.

(3) Ships to which this Part applies shall, until the 17th day of July, 1994, continue to have their tonnages ascertained in accordance with the provisions of the Regulations as set out in the Fourth Schedule and Appendices 1 to 4 thereto.

PART VFOREIGN SHIPS WHILST WITHIN THE STATE OR THE TERRITORIAL WATERS THEREOF

14 Acceptance of foreign tonnage certificates.

14. (1) An International Tonnage Certificate (1969) issued under the authority of another Contracting Government to a foreign ship in accordance with the Convention shall be accepted and regarded for all purposes covered by the Convention as having the same validity as one issued under Part II of these Regulations. Whilst such a ship is within the State or the territorial waters thereof it may be subject to inspection by a person duly authorised by the Minister in that behalf for the purpose of verifying:

( a ) that the ship is provided with a valid International Tonnage Certificate (1969) and

( b ) that the main characteristics of the ship correspond to the data given in the certificate.

(2) Any such inspection shall not cause any delay to the ship.

(3) If the inspection reveals that the main characteristics of the ship differ from those entered in the International Tonnage Certificate (1969) so as to lead to an increase in the gross tonnage or the net tonnage, the Administration of the State whose flag the ship is flying shall be informed without delay.

15 Ascertainment of tonnage and certification.

15. (1) New Ships.

( a ) The Certifying Authority may, at the request of the Administration of a Contracting Government, ascertain the gross and net tonnages of a new foreign ship in accordance with Part II of these Regulations and issue to the owner an International Tonnage Certificate (1969). In such cases the certificate shall be endorsed to the effect that it has been issued at the request of the Government of the State whose flag the ship is or will be flying, and a copy of the certificate and the calculations of the tonnages shall be transmitted to the requesting Government as soon as possible.

( b ) The Certifying Authority may, at the request of an owner of a new foreign ship flying the flag of an Administration of a non-Contracting Government ascertain the gross and net tonnages of the ship in accordance with Part II of these Regulations and issue a Certificate of Irish Tonnage Measurement. In such cases the certificate will bear the endorsement "for use only whilst within the State or the territorial waters thereof".

(2) Existing Ships.

( a ) The Certifying Authority may, at the request of the Administration of a Contracting Government, ascertain the gross and net tonnages of an existing foreign ship in accordance with Part II of these Regulations and issue to the owner an International Tonnage Certificate (1969). In such cases the certificate shall be endorsed to the effect that it has been issued at the request of the Government of the State whose flag the ship is or will be flying, and a copy of the certificate and the calculations of the tonnages shall be transmitted to the requesting Government as soon as possible.

( b ) The Certifying Authority may, at the request of the owner of any existing foreign ship, ascertain the gross and net tonnages of the ship in accordance with Part IV of these Regulations until the 17th day of July, 1994. In such cases an Irish Tonnage Certificate shall be issued.

PART VIINTERIM SCHEME FOR TONNAGE MEASUREMENT FOR CERTAIN SHIPS

16 Application of Part VI.

16. (1) The Minister may, at the written request of an owner of an Irish ship required to be measured and certified in accordance with Part II of these Regulations:

( a ) which is a ship the keel of which is laid or is at a similar stage of construction not later than the 31st day of December, 1985; or

( b ) which is a cargo ship of less than 1600 tons gross tonnage as ascertained in accordance with Regulation 13 (3) of these Regulations, the keel of which is laid or is at a similar stage of construction before the 18th day of July, 1994 permit such a ship to have, additionally, its gross tonnage ascertained by the Certifying Authority in accordance with the provisions of the tonnage regulations as set out in the Fourth Schedule and Appendices 1 to 4 thereto, and to use this tonnage for the purpose of the application of the provisions of regulations implementing the International Convention for the Safety of Life at Sea, 1974, and the Protocol of 1978 relating to that Convention.

(2) The measurement of a ship in accordance with paragraph (1) above shall be in respect of gross tonnage only and an appropriate Irish Tonnage Certificate shall be issued and it shall be endorsed with the following endorsement:

"For use only for the application of the Interim Scheme for Tonnage Measurement for Certain Ships (IMO Resolution A494 (XII) )":

(3) Where the gross tonnage is ascertained in accordance with paragraph (1) above and a Safety of Life at Sea Convention certificate is subsequently issued, then only that tonnage shall be recorded in that certificate and the certificate shall be endorsed with the following endorsement:

"The above gross tonnage has been measured by the Certifying Authority of Ireland in accordance with the tonnage regulations which were in force prior to the coming into force of the International Convention on Tonnage Measurement of Ships, 1969."

FIRST SCHEDULE

EXCLUDED APACES AS DEFINED IN REGULATION 2

In the following figures:

O = excluded space

C = enclosed space

I = space to be considered as an enclosed space.

Hatched in parts to be included as enclosed spaces.

B = breadth of the deck in way of the opening.

In ships with rounded gunwales the breadth is measured as indicated in Figure 11.

/images/si369y84p0021.gif

/images/si369y84p0022.gif

/images/si369y84p0023.gif

SECOND SCHEDULE

Coefficients K1 and K2 Referred to in Regulations 6, 7 and 8

V or Vc=Volume in cubic metres

V or Vc

K1 or K2

V or Vc

K1 or K2

V or Vc

K1 or K2

V or Vc

K1 or K2

10

0.2200

45000

0.2931

330000

0.3104

670000

0.3165

20

0.2260

50000

0.2940

340000

0.3106

680000

0.3166

30

0.2295

55000

0.2948

350000

0.3109

690000

0.3168

40

0.2320

60000

0.2956

360000

0.3111

700000

0.3169

50

0.2340

65000

0.2963

370000

0.3114

710000

0.3170

60

0.2356

70000

0.2969

380000

0.3116

720000

0.3171

70

0.2369

75000

0.2975

390000

0.3118

730000

0.3173

80

0.2381

80000

0.2981

400000

0.3120

740000

0.3174

90

0.2391

85000

0.2986

410000

0.3123

750000

0.3175

100

0.2400

90000

0.2991

420000

0.3125

760000

0.3176

200

0.2460

95000

0.2996

430000

0.3127

770000

0.3177

300

0.2495

100000

0.3000

440000

0.3129

780000

0.3178

400

0.2520

110000

0.3008

450000

0.3131

790000

0.3180

500

0.2540

120000

0.3016

460000

0.3133

800000

0.3181

600

0.2556

130000

0.3023

470000

0.3134

810000

0.3182

700

0.2569

140000

0.3029

480000

0.3136

820000

0.3183

800

0.2581

150000

0.3035

490000

0.3138

830000

0.3184

900

0.2591

160000

0.3041

500000

0.3140

840000

0.3185

1000

0.2600

170000

0.3046

510000

0.3142

850000

0.3186

2000

0.2660

180000

0.3051

520000

0.3143

860000

0.3187

3000

0.2695

190000

0.3056

530000

0.3145

870000

0.3188

4000

0.2720

200000

0.3060

540000

0.3146

880000

0.3189

5000

0.2740

210000

0.3064

550000

0.3148

890000

0.3190

6000

0.2756

220000

0.3068

560000

0.3150

900000

0.3191

7000

0.2769

230000

0.3072

570000

0.3151

910000

0.3192

8000

0.2781

240000

0.3076

580000

0.3153

920000

0.3193

9000

0.2791

250000

0.3080

590000

0.3154

930000

0.3194

10000

0.2800

260000

0.3083

600000

0.3156

940000

0.3195

15000

0.2835

270000

0.3086

610000

0.3157

950000

0.3196

20000

0.2860

280000

0.3089

620000

0.3158

960000

0.3196

25000

0.2880

290000

0.3092

630000

0.3160

970000

0.3197

30000

0.2895

300000

0.3095

640000

0.3161

980000

0.3198

35000

0.2909

310000

0.3098

650000

0.3163

990000

0.3199

40000

0.2920

320000

0.3101

660000

0.3164

1000000

0.3200

Coefficients K1 or K2 at intermediate values of V or Vc shall be obtained by linear interpolation.

THIRD SCHEDULE

INTERNATIONAL TONNAGE CERTIFICATE (1969)

Issued under the provisions of the

INTERNATIONAL CONVENTION ON TONNAGE MEASUREMENT OF SHIPS (1969)

under the authority of the Government of Ireland

Name of Ship

Official Number

Port of Registry

Date*

*Date on which keel was laid or the ship was at a similar stage of construction (Article 2 (6)), or date on which the ship underwent alterations or modifications of a major character, (Article 3 (2) (b)), as appropriate.

MAIN DIMENSIONS

Length (Article 2 (8))

Breadth (Regulation 2 (3))

Moulded Depth amidships to upper deck (Regulation 2 (2))

The tonnages of the Ship are:

GROSS TONNAGE ............................................................ ............................................................ .....

NET TONNAGE ............................................................ ............................................................ ..........

THIS IS TO CERTIFY

that the tonnages of this ship have been determined in accordance with the provisions of the International Convention on the Tonnage Measurement of Ships, 1969.

Issued at .......................................................  ...................................... 19...........

(place of issue of certificate)

(date of issue)

The undersigned declares that he is duly authorised by the said Government to issue this certificate

(signed) ............................................................ .......................

(An authorised officer of the Department of Communications)

(Reverse side of Certificate)

SPACES INCLUDED IN TONNAGE

GROSS TONNAGE

NET TONNAGE

Name of Space

Location

Length

Name of Space

Location

Length

Underdeck

NUMBER OF PASSENGERS

(Regulation 4 (1))

Number of passengers in cabins with not more than 8 berths .........

Number of other passengers...............

EXCLUDED SPACES

(Regulation 2 (5))

An asterisk (*) should be added to those spaces listed above which comprise both enclosed and excluded spaces.

MOULDED DRAUGHT

(Regulation 4(2))

Date and place of original measurement ............................................................ ..........................................

Date and place of last previous re-measurement ............................................................ .............................

REMARKS:

FOURTH SCHEDULE

TONNAGE REGULATIONS APPLICABLE TO SHIPS REFERRED TO IN PARTS III, IV, V AND VI.

Definitions.

In addition to the definitions prescribed in Regulation 2, in this Schedule and Appendices 1 to 5 thereto, unless the context otherwise requires:—

"the Act of 1955" means the Mercantile Marine Act, 1955 ;

"crew accommodation" has the same meaning as in the Merchant Shipping (Crew Accommodation on Board Ship) Regulations, 1951 ( S.I. No. 95 of 1951 );

"dry cargo space" means space appropriated for the carriage of cargo other than liquid or gaseous matter in bulk;

"overall length" in relation to a pleasure yacht to which Part IV of this Schedule applies means the distance between the foreside of the foremost fixed permanent structure and the aftside of the aftermost fixed permanent structure of the yacht;

"propelling machinery space" means space below the upper deck appropriated for the main or auxiliary propelling machinery of a ship, and includes:—

( a ) ventilation, light or escape trunks serving any such space;

( b ) space appropriated for boilers serving such machinery;

( c ) shaft tunnels;

( d ) engineers' storerooms and workshops not exceeding in total tonnage ¾ of 1 per cent of the gross tonnage of the ship;

( e ) oil fuel settling tanks serving the main or auxiliary propelling machinery, having a total capacity sufficient to provide not less than 24 or more than 96 hours steaming for the ship at maximum speed;

and shall also include framed-in spaces on or above the upper deck described in paragraph 4(1) (e) and included in the gross tonnage of the ship in accordance with that provision;

"second deck" means the deck next below the upper deck, being a deck—

( a ) which is fitted as an integral part of the ship's structure;

( b ) which is continuous at least between peak bulkheads both fore and aft and transversely, and

( c ) in which all hatchways are fitted with substantial and durable covers,

a deck being taken to be continuous for this purpose notwithstanding the presence in it of—

(i) openings serving propelling machinery space or leading to ladderways or stairways;

(ii) hatch or ventilation trunks, provided that they do not extend fore and aft from one main transverse bulkhead to another;

(iii) chain lockers or cofferdams; or

(iv) a break or breaks the aggregate height of which above the line of continuation of the deck does not exceed 4 feet;

"surveyor" (except in proviso (i) to paragraph 9 of this Schedule) means a surveyor appointed by a Certifying Authority;

"tonnage deck" means the second deck except in the case of single deck ships, in which case it means the upper deck;

"upper deck" means the uppermost complete deck exposed to sea and weather fitted as an integral part of the ship's structure, being a deck all openings in the weather portions of which are fitted with permanent means of closing and below which all openings in the sides of the ship are fitted with permanent means of watertight closing, but shall in the case of an open ship be taken to be the upper edge of the upper strake of the gunwale.

PART I

Ascertainment of tonnage.

1. The tonnage of any ship to which Parts III and IV of these Regulations and this Schedule applies and which is to be registered in the State, shall be ascertained in accordance with this Schedule: provided that in the case of novel types of craft with constructional features which render the application of the provisions of this Schedule unreasonable or impracticable, the tonnage shall be determined as required by the Minister.

Method of measurement.

2. (1) The owner and the master of a ship to be measured shall upon payment of the appropriate fee make it available for measurement by a surveyor and afford all necessary facilities for its inspection and measurement and shall produce for the surveyor's use and retention if required such plans, drawings, specifications and other documents relating to the ship as he may require.

(2) Subject to paragraph (3) of this paragraph, the tonnage of a ship shall be measured in the manner specified in Rule 1 of Appendix 1 and in Appendix 2 to this Schedule.

(3) In any case in which the surveyor is satisfied that, by reason of the ship's being laden or otherwise, measurement of the tonnage of the ship below the upper deck in accordance with subparagraph (2) of this paragraph is not reasonably practicable, such tonnage shall be measured in the manner specified in Rule 2 of Appendix 1 and in the case of a ship so measured the provisions of paragraphs 11 and 12 shall not apply.

(4) The Certifying Authority may on the application of the owner of any ship the tonnage of which below the upper deck has been measured in accordance with subparagraph (3) direct such tonnage to be measured in accordance with subparagraph (2) and furnish the particulars of such measurement to the Registrar of Shipping at the port at which the ship is registered, and that Registrar shall alter the particulars relating to the registered tonnage of the ship accordingly.

(5) All measurements required by this Schedule shall be taken and expressed in feet and fractions of a foot, and such fractions shall be expressed in decimals.

(6) Tonnage in relation to any ship or space in a ship shall be measured in terms of cubic capacity, 100 cubic feet representing one ton.

Certificates of Irish tonnage.

3. (1) The Certifying Authority shall issue to the owner of every ship registered in the State under the Mercantile Marine Act, 1955 , the tonnage of which has been ascertained in accordance with this Schedule, a certificate of Irish tonnage certifying the registered tonnage of the ship and containing the following particulars:—

( a ) the name, port of registry and official number of the ship;

( b ) its registered dimensions;

( c ) its gross tonnage and the tonnage of each of the components thereof specified in paragraph 4 (1);

( d ) its register tonnage and the deductions and allowances made pursuant to paragraphs 9 and 10 respectively in ascertaining that tonnage;

( e ) in the case of a ship to which gross and register tonnages have been assigned in accordance with paragraph 11 or to which alternative tonnages have been assigned in accordance with paragraph 12, particulars of the spaces the tonnage of which has been excluded by virtue of the provisions of paragraph 11 or paragraph 12, as the case may be, in ascertaining such tonnages;

( f ) the position in which any tonnage mark assigned to the ship is to be placed.

(2) The gross and register tonnages as stated in that certificate shall, unless any alteration is made in the form or capacity of the ship or it is discovered that the tonnage of the ship has been erroneously computed, be taken for that purpose to be the gross and register tonnages of the ship.

(3) On remeasurement of a ship any certificate of Irish tonnage in force in relation to that ship shall be delivered up to the Certifying Authority and the Certifying Authority shall issue a new certificate in place thereof.

PART II

A. GROSS TONNAGE

Components of gross tonnage.

4. (1) Subject to the provisions of Part III of this Schedule, the gross tonnage of ships shall be the sum of:—

( a ) the underdeck tonnage of the ship ascertained in accordance with the provisions of paragraph 5 and paragraph 1 of Rule 1 of Appendix 1 to this Schedule;

( b ) the tonnage of betweendeck space between the second deck and the upper deck ascertained in accordance with the provisions of paragraph 2 of the said Rule 1;

( c ) the tonnage of permanently closed-in spaces on or above the upper deck including that of breaks situated above the line of the deck but excluding:—

(i) the tonnage of hatchways described in paragraph 6;

(ii) the tonnage of framed-in spaces on or above the upper deck which contain any part of the propelling machinery or which light or ventilate space appropriated for such machinery;

(iii) any space excluded by virtue of the provisions of paragraph 7, ascertained in accordance with the provisions of paragraphs 3, 4 and 5 of the said Rule 1;

( d ) the tonnage of hatchways described in paragraph 6, ascertained in accordance with the provisions of that paragraph and paragraph 5 of the said Rule 1;

( e ) tonnage of framed-in spaces on or above the upper deck which contain any part of the propelling machinery or which light or ventilate space appropriated for such machinery, ascertained in accordance with the provisions of paragraph 5 of the said Rule 1, subject to the conditions that:—

(i) the owner of the ship has made written application to the Certifying Authority for the inclusion of such spaces in the propelling machinery space of the ship;

(ii) they are permanently marked by a notice stating their purpose; and

(iii) They are certified by a surveyor as safe and seaworthy and properly constructed for their purpose, as reasonable in extent for that purpose, and as being such that they cannot be used for any other purpose.

(2) In the case of a ship the tonnage of which below the upper deck has been measured in accordance with Rule 2 of Appendix 1, that tonnage shall be included instead of the tonnages specified at (a) and (b) in subparagraph (1).

(3) For the purpose of this Schedule and Appendices 1 to 5 thereto the expression "permanently closed-in spaces on or above the upper deck" shall include:—

( a ) a poop, bridge or forecastle notwithstanding the presence of an opening in the end transverse bulkhead thereof, unless the opening extends from deck to deck for one half or more of the breadth of the deck in way of the bulkhead;

( b ) a deck house notwithstanding the presence of an opening in one of the boundary bulkheads thereof exposed to the weather, unless the opening extends from deck to deck for one half or more of the length of the bulkhead in which it is situated and is 4 feet wide or more;

( c ) a structure extending from side to side of the ship notwithstanding the presence in it of an opening in the ship's side, unless the opening extends for one half or more of the length of the space which it serves and exceeds in height one third of the distance from deck to deck in way of the opening or 2 feet 6 inches, whichever is the greater;

( d ) a passage way at the ship's side, unless it is 4 feet wide or more and is completely open to the weather at one end, or both ends, of its length;

( e ) a recess, unless it extends from deck to deck for 3 feet or more of its width and is exposed to the weather; and

( f ) any space having an opening in the deck over being a deck exposed to the weather, unless the area of the opening is one quarter or more of the deck area over the space.

Underdeck tonnage.

5. The underdeck tonnage of a ship shall be the sum of:—

( a ) the tonnage of the space below the tonnage deck bounded by:—

(i) the tonnage deck,

(ii) the upper surface of the double bottom tanks, open floors or ceiling as the case may be, and

(iii) the inner face of the timbers, frames or sparring as the case may be, measured in accordance with the provisions of paragraph 1 of Rule 1 of Appendix 1 to this Schedule, but subject to such limitations specified in Appendix 2 as may be applicable in the circumstances of the case, and excluding the tonnage of breaks above the line of the tonnage deck; and

( b ) the tonnage of shaft bossings and any other appendages forming part of the hull of the ship below the tonnage deck whether or not they project beyond the extreme points of measurement of that deck.

Tonnage of hatchways.

6. The tonnage of all hatchways leading to space included in the gross tonnage of the ship other than internal hatchways totally enclosed within such space shall be measured in accordance with paragraph 5 of Rule 1 of Appendix 1 to this Schedule and from the aggregate thereof there shall be deducted ½ of 1 per cent of the ship's gross tonnage excluding such aggregate. The remainder (if any) shall be the tonnage of hatchways, customarily referred to as "excess of hatchways", to be included in the gross tonnage of the ship.

Closed-in spaces on or above the upper deck not to be included in gross tonnages.

7. Permanently closed-in spaces of the following kinds situated on or above the upper deck shall not be included in the gross tonnage of the ship:

( a ) dry cargo space, unless situated in a break above the line of the upper deck;

( b ) space fitted with and appropriated for the use of machinery or condensers;

( c ) the wheelhouse and chartroom, and space fitted with and appropriated for the use of radio and navigational aids;

( d ) skylights, domes and trunks which light or ventilate the space they serve;

( e ) chain lockers, and space appropriated for working the anchor gear and capstan;

( f ) space appropriated for the storage of safety equipment or batteries;

( g ) companions and access hatches serving as protection for stairways or ladderways leading to space below, and openings over such stairways and ladderways;

( h ) the galley, and any separate bakery fitted with ovens, provided in either case that no part thereof is appropriated for use for any other purpose;

( i ) washing and sanitary accommodation forming part of the crew accommodation or appropriated for the use of the master;

( j ) workshops and storerooms appropriated for the use of pumpmen, engineers, electricians, carpenters and boatswains, and the lamp room;

( k ) water ballast tanks not appropriated for use for any other purpose;

( l ) shelter space providing weather protection only for use, free of charge, by deck passengers in ships intended for use only on voyages not exceeding 10 hours duration;

( m ) sheltered promenade space, glassed in and unfurnished except for deckchairs or similar light portable seating, in ships intended for use on international voyages:

Provided that this paragraph shall not apply in any case other than that specified at subparagraph (a) unless the space is certified by a surveyor as being reasonable in extent, and properly constructed, for its purpose and is permanently marked by a notice stating that purpose.

B. REGISTER TONNAGE

Ascertainment of Register Tonnage.

8. Subject to the provisions of Part III of this Schedule, the register tonnage of a ship shall be the tonnage obtained by deducting from its gross tonnage:—

( a ) the tonnage of spaces specified in paragraph 9, and

( b ) the tonnage allowance for propelling machinery space described in paragraph 10:

Provided that:—

(i) the deduction shall in each case be subject to any condition, limit or restriction expressed to be applicable in that case; and

(ii) no deduction shall be made of or in respect of the tonnage of any space which has not first been included in the ship's gross tonnage.

Space to be deducted.

9. The spaces referred to in paragraph 8(a) are:—

( a ) space appropriated for the accommodation of the master;

( b ) crew accommodation, except space appropriated for the storage of fresh water and space appropriated for the storage of provisions (other than fresh water) being in the latter case space in excess of 15 per cent of the aggregate of:—

(i) space appropriated for the accommodation of the master; and

(ii) crew accommodation other than space appropriated for the storage of provisions and fresh water;

( c ) the wheelhouse and chartroom, and space fitted with and appropriated for the use of radio and navigational aids;

( d ) chain lockers and space appropriated for, or for the working of, the steering gear, anchor gear and capstan;

( e ) space appropriated for the storage of safety equipment or batteries;

( f ) workshops and storerooms appropriated for the use of pumpmen, electricians, carpenters and boatswains, and the lamp-room;

( g ) space occupied by the donkey engine and boiler if they are outside the propelling machinery space and connected to the main pumps of the ship;

( h ) space occupied by the main pumps of the ship if they are outside the propelling machinery space;

( i ) in the case of ships wholly propelled by sails, space appropriated for the storage of sails, so, however, that the total tonnage of such space does not exceed 2½ per cent of the ship's gross tonnage; and

( j ) water ballast tanks not appropriated for use for any other purpose, so, however, that the total tonnage so to be deducted, when added to the tonnage of spaces appropriated for water ballast not included in the gross tonnage of the ship consisting of double bottom space, space below bottom floor level or space above the upper deck, does not exceed 19 per cent of the ship's gross tonnage:

Provided that no deductions shall be made—

(i) in respect of any spaces specified in subparagraph (b) unless it is certified by a Department of Communications surveyor as complying with all applicable provisions as to crew accommodation contained in the Merchant Shipping Acts, 1894 to 1983, and regulations made thereunder; and

(ii) in respect of any space specified in subparagraphs (a) or (c) to (j) unless it is certified by a surveyor to be reasonable in extent, and properly constructed, for its purpose and is permanently marked by a notice stating that purpose.

Allowances for propelling machinery space.

10. The tonnage allowance for propelling machinery space to be deducted pursuant to paragraph 8(b) shall be determined as follows:—

( a ) in the case of ships propelled by screws—

(i) if the tonnage of the propelling machinery space is 13 per cent or over but less than 20 per cent of the gross tonnage the allowance shall be 32 per cent of the gross tonnage;

(ii) if the tonnage of the propelling machinery space is less than 13 per cent of the gross tonnage the allowance shall be that lesser percentage of the gross tonnage multiplied by 32/13;

( b ) in the case of ships propelled by paddle wheels—

(i) if the tonnage of the propelling machinery space is 20 per cent or over but less than 30 per cent of the gross tonnage the allowance shall be 37 per cent of the gross tonnage;

(ii) if the tonnage of the propelling machinery space is less than 20 per cent of the gross tonnage the allowance shall be that lesser percentage of the gross tonnage multiplied by 37/20;

( c ) in the case of ships to which subparagraphs (a) and (b) do not apply, the allowance shall be—

(i) in the case of ships propelled by screws 1¾ times the tonnage of the propelling machinery space;

(ii) in the case of ships propelled by paddle wheels, 1½ times the tonnage of the propelling machinery space:

Provided that—

(i) in no case save that of tugs intended to be used exclusively as such shall the allowance exceed 55 per cent of that portion of the tonnage of the ship which remains after deducting from its gross tonnage the deductions authorised by paragraph 8(a); and

(ii) such deductions shall be subject to the propelling machinery space and space appropriated for its lighting and ventilation being certified as adequate by a surveyor and being permanently marked by notices stating their purpose.

PART III

MODIFIED AND ALTERNATIVE TONNAGES AND TONNAGES MARKS

Modified gross and register Tonnage of ships with certain freeboards.

11. (1) This paragraph shall apply to a ship in respect of which greater than minimum freeboards have been assigned under the Load Line Rules and the positions of the load lines:—

( a ) are not higher than would have been the case if freeboards assigned to the ship and the position of the load lines appropriate thereto had been calculated treating the second deck as the freeboard deck; or

( b ) are such that the uppermost load line is not higher than the position of the tonnage mark determined in accordance with Appendix 4 to this Schedule.

(2) The Certifying Authority may, on the application of the owner of a ship to which this paragraph applies, assign to the ship as its gross tonnage and register tonnage a modified gross tonnage and modified register tonnage ascertained in accordance with subparagraph (3) of this paragraph instead of the gross tonnage and register tonnage ascertained in accordance with Part II of this Schedule.

(3) The modified gross tonnage and modified register tonnage so to be assigned shall be ascertained in accordance with Part II of this Schedule subject to the following modifications:—

( a ) for references to the upper deck in—paragraph 4(1)(c) and (e), and (3); paragraph 7; paragraph 9(j); the definition of "propelling machinery space" in definitions at the beginning of this Schedule and Appendix 1, paragraphs 3, 5 and 6, there shall be substituted references to the second deck; and

( b ) paragraph 4(1)(b) and paragraph 2 of Rule 1 of Appendix 1 shall be omitted.

(4) Where such tonnages have been assigned to a ship there shall be placed on each side of the ship a tonnage mark in the form described in Appendix 3 to this Schedule in a position in line with the uppermost load line to which the ship may be loaded but, subject to the foregoing, in a position determined in accordance with Appendix 4.

Alternative tonnages.

12.—(1) The Certifying Authority may, on the application of the owner of a ship, assign to the ship, as an alternative to its gross tonnage and register tonnage ascertained in accordance with Part II of this Schedule, the modified gross tonnage and modified register tonnage ascertained in accordance with the provisions of subparagraph (3) of paragraph 11.

(2) Where alternative tonnages have been assigned to a ship there shall be placed on each side of that ship a tonnage mark in the form described in Appendix 3 to this Schedule in a position determined in accordance with the provisions of Appendix 4.

(3) The gross tonnage and register tonnage of the ship shall be taken to be respectively the modified gross tonnage and modified register tonnage when the ship is so loaded that the tonnage mark is not submerged. At all other times the gross and register tonnages of the ship shall be those ascertained in accordance with Part II of this Schedule.

PART IV

PLEASURE YACHTS UNDER 45 FEET IN LENGTH

13.—(1) This part of this Schedule applies only in relation to pleasure yachts under 45 feet (13.7 metres) in overall length which either:—

( a ) are to be registered in the State under the Mercantile Marine Act, 1955 on or after the 31st day of March, 1985; or

( b ) being so registered before that date fall to be re-measured thereafter pursuant to the provisions of section 18 of the said Act.

(2) Parts I to III of this Schedule shall not apply in relation to pleasure yachts to which this part of this Schedule applies.

14. The tonnage of a pleasure yacht to which this Part of this Schedule applies shall be ascertained in accordance with paragraph 15 and the tonnage so ascertianed shall be taken to be its gross and register tonnage.

15.—(1) The owner of such a pleasure yacht to be measured shall make it available for measurement by a surveyor appointed by the Certifying Authority and shall afford all necessary facilities for its inspection and measurement and shall produce for the surveyor's or measurer's use and retention if required such plans, drawings, specifications and other documents relating to the pleasure yacht as he may require.

(2) The tonnage of a pleasure yacht to which this Part of this Schedule applies shall be measured in the manner specified in Appendix 5 to this Schedule—

PART V

SPACE FOR THE PURPOSES OF SECTION 93 of THE MERCANTILE MARINE ACT, 1955

16.—(1) Space to be taken into account for the purposes of section 93 of the mercantile Marine Act, 1955 (payment of dues where goods carried in spaces not forming part of registered tonnage) shall, subject to subparagraph (2) of this paragraph, be ascertained in accordance with the provisions of paragraph 5 of Rule 1 of Appendix 1 to this Schedule.

(2) Where—

( a ) a ship has been assigned alternative tonnages in pursuance of paragraph 12, and

( b ) the tonnages applicable to the ship are modified tonnages ascertained in accordance with paragraph 11 (3),

no account shall be taken for the purpose of the said section 93 of any space, which is included in the register tonnage ascertained in accordance with Part II of this Schedule but which is not included in the modified register tonnage, to the extent that the tonnage of such space exceeds the difference between those register tonnages.

(3) Goods or stores shall not be carried in any permanently closed-in space on board the ship which has not been included in the registered tonnage of the ship other than

( a ) dry cargo spaces;

( b ) workshops or storerooms appropriated for the use of pump men, engineers, electricians, carpenters and boatswains;

( c ) the lamp room; or

( d ) double bottom tanks.

APPENDIX 1 TO FOURTH SCHEDULE

MEASUREMENT OF TONNAGE

RULE 1

Paragraph 2 of

Fourth Schedule

Underdeck tonnage.

1. (1) The length of the deck shall be measured in a straight line in the middle plane of the ship between the points at the forward and after ends of the deck where the underside of the deck, or the line of continuation thereof in way of breaks or discontinuations of the deck, meets the inner face of the frames, timbers, ceiling or sparring as the case may be. Such length so measured is hereafter referred to in this Appendix and in Appendix 2 to this Schedule as the "tonnage length".

(2) In ships which have a break, or breaks, in a double bottom the tonnage length shall be measured in parts corresponding to the number and position of such break or breaks.

(3) The tonnage length, or the length of each of the several parts thereof obtained in accordance with subparagraph (2), shall be divided into equal parts as shown in the following table:—

length 50 feet or under, into 4 equal parts;

length above 50 feet but not exceeding 120 feet, into 6 equal parts;

length above 120 feet but not exceeding 180 feet, into 8 equal parts;

length above 180 feet but not exceeding 225 feet, into 10 equal parts;

length above 225 feet, into 12 equal parts:

Provided that the length of any of the several parts obtained in accordance with subparagraph (2) may be divided into 2 equal parts if such length is 30 feet or under.

(4) The transverse area of the ship at each point of division of the tonnage length, or of parts of that length as aforesaid, shall be calculated as follows:

( a ) The depth in the middle plane of the ship from the underside of the tonnage deck to the top of the open floor or double bottom as the case may be shall be measured, deducting therefrom the average thickness of ceiling, if fitted, and one-third the round of beam. If the top of the double bottom falls from the middle plane of the ship, there shall be added to the depth the mean of the fall; if the top of the double bottom rises from the middle plane, a corresponding correction shall be deducted from the depth.

In ships of wooden construction the lower terminal point of the depth shall be the upper side of the floor timber at the inside of the limber strake, after deducting therefrom the average thickness of ceiling between the bilge plands and the limber strake.

( b ) If the depth so obtained does not exceed 16 feet at the amidship division of the total tonnage length, the depth at each point of division of the tonnage length, or of parts of that length as aforesaid, shall be divided into 4 equal parts; depths in excess of 16 feet shall be divided into 6 equal parts.

( c ) At the point of division between each of the parts obtained in accordance with subparagraph (b) the horizontal breadths to the inner face of the timber frame or sparring as the case may be shall be measured. Numbering these breadths from the tonnage deck, the even numbered breadths shall be multiplied by 4 and the others, with the exception of the first and last, by 2; these products shall be added together, and to the sum there shall be added the first and last breadths; the quantity thus obtained shall be multiplied by one-third of the common interval between the breadths and the product shall be the transverse area in square feet.

(5) The transverse areas so obtained shall be numbered from the extreme forward point of measurement of the tonnage length, or of the parts thereof as the case may be; the even number areas shall be multiplied by 4 and the odd numbered areas, other than the first and last, by 2; these products shall be added together and to the sum there shall be added the area (if any) of the first and last; the quantity thus obtained shall be multiplied by one-third of the common interval between the areas; the product so obtained divided by 100 shall be the underdeck tonnage of the ship exclusive of the tonnage of spaces to be included therein pursuant to paragraph 5(b) of the Fourth Schedule (appendages).

Between deck space between the second deck and the upper deck.

2. (1) ( a ) Between deck space between the second deck and the upper deck shall be measured for length in a straight line in the middle plane of the ship between the points at the forward and after ends of the space where the inner surface of the frames, timbers, ceiling or sparring as the case may be, meets the middle plane of the ship at half the height between the upper surface of the deck and the underside of the deck over.

( b ) Where a break exists in the second deck or the upper deck the line of the deck shall be extended through the break parallel to the raised part of the break; and the tonnage of the betweendeck space shall be measured in such a case by reference to the line of the deck so extended.

(2) The length shall be divided into equal parts as provided in paragraph 1(3) of this Rule. At each of these points of division the horizontal breadth from the inner face of the frames, timbers or sparring as the case may be, shall be measured at half the height of the betweendeck space.

(3) These breadths shall be numbered from the stem, the stem being number 1. The even numbered breadths shall be multiplied by 4 and the odd numbered, other than the first and last, by 2. The products shall be added together and the first and the last breadths shall be added to the sum. The quantity thus obtained shall be multiplied by one-third of the common interval between the breadths, and the area thus obtained shall be multiplied by the mean height between the upper surface of the deck and the underside of the deck over. The product so obtained divided by 100 shall be the tonnage of the betweendeck space.

Breaks in the upper deck.

3. Breaks in the upper deck shall be measured for length in a straight line in the middle plane of the ship between the extremities of the break at half the height of the break, terminal points at the stem or stern being taken as described in paragraph 2(1) of this Rule. The length so obtained shall be divided into 2 equal parts for lengths of 50 feet or less, 4 equal parts for lengths above 50 feet but not more than 225 feet and 6 equal parts for lengths over 225 feet. At each of the points of division the horizontal breadth at half the height of the break at the ship's side to the inner face of the frames, timbers or sparring as the case may be shall be measured. Numbering these breadths from the foremost terminal point, the even numbered breadths shall be multiplied by 4 and the odd numbered, other than the first and last, by 2. The products shall be added together and to the sum there shall be added the first and last breadths. The quantity thus obtained shall be multiplied by one-third of the common interval between the breadths. The area thus obtained shall be multiplied by the height of the break. The product divided by 100 shall be the tonnage of the break.

Poop, bridge and forecastle.

4. A poop, bridge or forecastle shall be measured as follows:—

The mean length thereof shall be measured at half the height between the upper surface of the deck and the underside of the deck over, terminal points at the stem and stern being taken as described in paragraph 2(1) of this Rule. The length so obtained shall be divided into 2 equal parts for lengths of 50 feet or under, 4 equal parts for lengths over 50 feet but not exceeding 225 feet, and 6 equal parts for lengths exceeding 225 feet. At each of the points of division the horizontal breadth shall be measured from the inner face of the frames, timbers or sparring as the case may be at half the height between the upper surface of the deck and the underside of the deck over. Numbering these breadths from the foremost terminal point, the even numbered breadths shall be multiplied by 4 and the odd numbered, other than the first and last, by 2. The products shall be added together and to the sum there shall be added the first and last breadths. The quantity thus obtained shall be multiplied by one-third of the common interval between the breadths, and the area thus obtained shall be multiplied by the mean height of the poop, bridge or forecastle. The product divided by 100 shall be the tonnage of the poop, bridge or forecastle.

Other permanently closed-in spaces on or above the upper deck.

5. Permanently closed-in spaces on or above the upper deck other than those dealt with in paragraph 4 shall be measured by ascertaining their mean length, breadth and height and the product of multiplying these dimensions together shall, when divided by 100, be the tonnage of the space.

Propelling machinery space.

6. (1) Propelling machinery space which extends to the ship's side and is situated below the upper deck shall be measured as follows:—

The mean length shall be measured in each space at half the mean depth, which shall be measured in the middle plane of the ship from the underside of the deck forming the crown of the space to the top of the double bottom or open floors, allowance being made for ceiling if fitted; for amidship spaces 3 equally spaced breadths shall be used and for spaces abaft amidships 3 equally spaced breadths shall be used for lengths up to 30 feet, 5 equally spaced breadths for lengths over 30 feet to 50 feet and 7 equally spaced breadths for lengths over 50 feet, the breadths being measured from the inner face of the frames, timbers or sparring as the case may be at half the depth of the space at that point. The mean length, mean breadth and mean depth so ascertained shall be multiplied together and the product divided by 100 shall be the tonnage of the space.

(2) Propelling machinery which does not extent to the ship's side and is situated below the upper deck shall be measured by ascertaining its mean length, mean breadth and mean depth, and the product of multiplying these dimensions together shall, when divided by 100, be the tonnage of the space.

Shaft bossings and appendages.

7. The tonnage of shaft bossings and other appendages referred to in paragraph 5(b) of the Fourth Schedule shall be ascertained by measuring the internal cubic capacity of the space as accurately as practicable and dividing the result by 100.

RULE 2

MEASUREMENT OF TONNAGE BELOW THE UPPER DECK WHERE MEASUREMENT IN ACCORDANCE WITH RULE I IS IMPRACTICABLE

1. The length of the ship shall be measured on the upper side of the upper deck from the inside of the outer plate or plank at the stem to the aft side of the stern-post, or to the fore side of the rudder stock where no stern-post is fitted. The extreme breadth of the ship shall be measured, excluding rubbers or fenders. The girth, from the upper edge of the upper deck at side on one side of the ship to the same point at the other side, shall be measured on the outside of the ship at the greatest breadth. To half the girth thus measured there shall be added half the aforesaid breadth. The square of the sum shall be multiplied by the aforesaid length. This product multiplied by .0017 in the case of ships built of wood and by .0018 in the case of other ships shall be the tonnage of the ship below the upper deck.

2. In any case in which the surveyor is satisfied that by reason of the size of the ship it is not reasonably practicable to measure its girth as provided in paragraph 1, such girth shall be ascertained by adding the aforesaid breadth of the ship to twice the depth of the ship from the top of the upper deck at the side of the ship to the bottom of the keel and multiplying this sum by 0.98.

APPENDIX 2 — TO FOURTH SCHEDULE

LIMITATIONS OF HEIGHT OF OPEN FLOORS AND DOUBLE BOTTOMS, AND OF DEPTHS OF FRAMES AND SIDE BRACKETS, FOR PURPOSES OF MEASUREMENT OF UNDERDECK TONNAGE

Paragraph 5 of

Fourth Schedule

The provision of this Appendix shall have effect for the purposes of the measurement of underdeck tonnage.

Open floors.

1. (1) Any part of an openfloor, other than a floor in the main space for the propelling machinery of a ship, which is situated above the horizontal line hereinafter described shall be disregarded for the purposes of measurement of underdeck tonnage, which shall be measured accordingly by reference to the said line.

(2) The line above referred to shall be a line passing through a point in the middle plane of the ship at a height consisting of the maximum height of open floors applicable to a ship of the tonnage length of the ship undergoing measurement, ascertained by reference to columns A and B of Table I and corrected by the addition of a distance equal to the rise of the moulded frame line at one quarter of the breadth of the ship between moulded frame lines at the said maximum height.

(3) The provisions of this paragraph shall also apply in the case of ships fitted with longitudinal floors and/or frames.

Double bottoms.

2. A double bottom, situated in any part of a ship other than the main space for the propelling machinery, which is of greater height than a height consisting of the maximum height of double bottom applicable to a ship of the tonnage length of the ship undergoing measurement, ascertained by reference to columns A and C of Table I and corrected by the addition of a distance equal to the rise of the moulded frame line at one quarter of the breadth of the ship between moulded frame lines at the said maximum height, shall be treated not as a double bottom but as an open floor of such height ascertained in accordance with the provisions of paragraph 1(2) of this Appendix as would be applicable in the case of a ship of the tonnage length of the ship undergoing measurement.

Bilge brackets.

3. (1) The horizontal width of bilge brackets measured from the shell of the ship to the inboard toe of the bracket shall not—

( a ) if taken at the level of the top of an open floor, exceed the maximum height of open floor applicable to the ship obtained by reference to columns A and B of Table I;

( b ) if taken at the level of the top of a double bottom, exceed the maximum height of double bottom applicable to the ship obtained by reference to columns A and C of that Table.

(2) In any case in which underdeck tonnage is measured by reference to a height ascertained and applied in accordance with the provisions of paragraphs 1 and 2 of this Appendix, the lowest breadth used in the measurement of underdeck tonnage area shall be the breadth between the inner sides of the shell of the ship taken at that height, less twice the maximum height of open floor applicable to the ship obtained by reference to columns A and B of Table I or twice the width of the bilge bracket whichever is the less.

Allowance for ceiling.

4. The limitations imposed by the preceding three paragraphs are exclusive of an allowance for ceiling, if fitted.

Depth of frames.

5. (1) Subject to subparagraph (2), the extent to which the depth of transverse or longitudinal ship side framing in the case of any ship, measured from its shell, exceeds the maximum depth of frame applicable to a ship of the registered breadth of the ship undergoing measurement ascertained by reference to Table II shall be disregarded and underdeck tonnage shall be measured accordingly by reference to the maximum depth of frame so ascertained.

(2) In the case of a ship in which alternate deep and shallow frames are fitted, the depth of frame used for purposes of measurement, measured from the shell of the ship, shall not exceed whichever is the lesser of the following dimensions:—

( a ) twice the depth of the shallow frame, or

( b ) the maximum depth of frame applicable to the ship ascertained as aforesaid.

(3) The limitations imposed by subparagraphs (1) and (2) are exclusive of an allowance for sparring fitted on the toe of the frames.

TABLE I

A

B

C

Tonnage Length of Ship

Maximum height of Open Floors

Maximum height of Double Bottom

The dimensions shown are to be increased by 50 per cent for the foremost 25 per cent and aftermost 15 per cent of the tonnage length of the ship.

In feet

In inches

In inches

Not exceeding 60

23

 34.5

80

24

36

100

25

 37.5

120

26

39

140

27

 40.5

160

28

42

180

29

 43.5

200

30

45

220

31

 46.5

240

32

48

260

33

 49.5

280

34

51

300

35

 52.5

320

36

54

340

37

 55.5

360

38

57

380

39

 58.5

400

40

60

420

41

 61.5

440

42

63

460

43

 64.5

480

44

66

500

45

 67.5

520

46

69

540

47

 70.5

560

48

72

580

49

 73.5

600

50

75

620

51

 76.5

640

52

78

660

53

 79.5

680

54

81

700

55

 82.5

In the case of ships of intermediate length, the maximum height of floors or double bottoms shall be obtained by interpolation, and in the case of ships exceeding 700 feet, by linear extrapolation.

TABLE II

Registered Breadth in feet

Maximum Depth of Frame in inches

Not exceeding 20

14

30

16

40

18

50

20

60

22

70

25

80

28

90

31

100 and above

34

In the case of ships of intermediate breadths, the maximum depth of frame shall be obtained by interpolation.

APPENDIX 3 TO FOURTH SCHEDULE

TONNAGEMARK

Paragraphs 11 and 12 of Fourth Schedule

1. Save as otherwise provided in paragraph 2, the tonnage mark shall consist as shown in Figure 1 of a horizontal line 15 inches long and 1 inch wide upon which shall be placed for identification purposes an inverted equilateral triangle, each side of which is 12 inches long and 1 inch wide, having its apex on the mid-point of the horizontal line.

/images/si369y84p0041.gif

2. In the case of a ship intended to operate in fresh or tropical waters as defined in the Load Line Rules (not being a ship on which tonnage marks have been placed in accordance with paragraph 11 of the Fourth Schedule), an additional horizontal line may on the application of the owner of the ship placed above the tonnage mark described in paragraph 1 at a distance of one forty-eighth (¼8th) of the moulded draught to that tonnage mark. This additional line shall be 9 inches long and 1 inch wide measured from a 1 inch wide vertical line (shown marked "W" in Figure 1) at the after end of, and perpendicular to, that tonnage mark. In such a case, at all such times as the ship so marked is operating in fresh or tropical waters as aforesaid, this additional line shall be taken to be the tonnage mark in lieu of that described in paragraph 1.

3. The lines and triangle above mentioned shall be painted in white or yellow on a dark ground or in black on a light ground, and carefully cut in, centre punched or welded on the sides of the ship. They shall be so kept and maintained as to be plainly visible at all times save when submerged.

APPENDIX 4 TO FOURTH SCHEDULE

POSITION OF TONNAGE MARKS

Paragraphs 11 and 12 of Fourth Schedule

1. The tonnage mark shall be placed on each side of the ship at a distance below the line where the underside of the second deck stringer plate meets the ship's side plating amidships, or below the line equivalent to that line as shown in Figure 2 in cases where the deck is stepped, to be ascertained by reference to the Tonnage Mark Table at the end of this Appendix.

/images/si369y84p0042.gif

2. In that Table—

(1) The length Lt in column A is the distance in feet on the second deck between the points at the forward and after ends of the deck where the underside of the deck or line of continuation thereof meets the inner surface of the frames, ceiling or sparring as the case may be in the middle plane of the ship, using an equivalent length in cases where the deck is stepped as shown in Figure 2;

(2) the depth Ds is the depth in feet amidships from the top of the keel to the point at which the underside of the second deck stringer plate meets the ship's side plating, using an equivalent depth as shown in Figure 2 in cases where the deck is stepped;

(3) the figures at the top of columns B to J represent the ratio Lt/Ds and the figures below in each column represent distances in inches from the line where the underside of the second deck stringer plate meets the ship's side plating amidships (or, in cases where the deck is steeped, from the equivalent line thereto as shown in Figure 2) to the point at which the upper edge of the tonnage mark is to be placed.

3. In the case of any ship of intermediate length or having an intermediate Lt/Ds ratio, the relevant distance to be applied shall be obtained by interpolation, and in other cases where necessary by linear extrapolation.

4. The effective relevant distance calculated by reference to the Tonnage Mark Table to be applied in the case of any ship shall be corrected to the nearest half-inch.

5. In the case of a ship to which load lines have been assigned the tonnage marks shall, subject to the provisions of paragraph 11 of the Fourth Schedule be placed in a position ascertained in accordance with the foregoing provisions of this Appendix with the apex of the identification triangle at a distance of 21 inches horizontally aft of the centre line of the load line disc:

Provided that in no case shall the tonnage marks be placed above the uppermost load line to which the ships may be loaded.

6. In the case of a ship to which load lines have not been assigned the tonnage marks shall be placed in a position ascertained in accordance with the foregoing provisions of this Appendix with the apex of the identification triangle at the middle of the length Lt. In every such case the line of the upper deck shall be shown by a deck line corresponding in form to that required by the Load Line Rules and placed centrally to a vertical line bisecting the identification triangle of the tonnage mark.

TONNAGE MARK TABLE

A

Lt/Ds

B

12

C

13

D

14

E

15

F

16

G

17

H

18

I

19

J

20

Length

Lt in feet

Distances in inches

220

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

and under

230

3.2

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

240

4.7

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

250

6.3

3.3

2.0

2.0

2.0

2.0

2.0

2.0

2.0

260

8.0

4.8

2.1

2.0

2.0

2.0

2.0

2.0

2.0

270

9.9

6.4

3.5

2.0

2.0

2.0

2.0

2.0

2.0

280

11.8

8.1

4.9

2.1

2.0

2.0

2.0

2.0

2.0

290

13.9

9.9

6.5

3.5

2.0

2.0

2.0

2.0

2.0

300

16.0

11.7

8.1

4.9

2.1

2.0

2.0

2.0

2.0

310

18.3

13.7

9.8

6.4

3.5

2.0

2.0

2.0

2.0

320

20.7

15.8

11.7

8.1

4.9

2.1

2.0

2.0

2.0

330

23.2

18.0

13.6

9.8

6.4

3.5

2.0

2.0

2.0

340

25.9

20.4

15.7

11.6

8.1

4.9

2.1

2.0

2.0

350

28.7

22.9

17.9

13.6

9.8

6.5

3.6

2.0

2.0

360

31.7

25.5

20.2

15.7

11.7

8.2

5.0

2.2

2.0

370

34.7

28.3

22.7

17.9

13.6

9.9

6.6

3.7

2.0

380

38.0

31.1

25.3

20.2

15.7

11.8

8.3

5.2

2.4

390

41.3

34.1

27.9

22.6

17.9

13.8

10.1

6.8

3.8

400

44.8

37.2

30.7

25.0

20.1

15.8

11.9

8.4

5.3

410

48.2

40.3

33.5

27.7

22.6

18.1

14.0

10.4

7.2

420

51.5

43.4

36.4

30.4

25.2

20.6

16.4

12.7

9.4

430

54.8

46.5

39.4

33.3

27.9

23.2

19.0

15.2

11.8

440

58.4

49.9

42.6

36.4

30.9

26.0

21.7

17.8

14.4

450

62.1

53.4

46.0

39.6

33.9

29.0

24.6

20.6

17.1

460

65.9

57.0

49.5

42.9

37.1

32.1

27.6

23.5

19.9

470

69.8

60.7

53.0

46.3

40.4

35.2

30.6

26.5

22.8

480

73.7

64.4

56.5

49.7

43.7

38.4

33.7

29.5

25.7

490

77.5

68.1

60.0

53.0

46.9

41.5

36.7

32.4

28.5

500

81.2

71.6

63.4

56.2

50.0

44.5

39.6

35.2

31.2

510

84.9

75.1

66.7

59.4

53.0

47.4

42.4

37.9

33.9

520

88.4

78.4

69.9

62.4

55.9

50.2

45.1

40.5

36.4

530

91.8

81.6

72.9

65.3

58.7

52.9

47.7

43.0

38.8

540

95.2

84.4

75.9

68.1

61.4

55.5

50.2

45.4

41.2

550

98.4

87.8

78.8

70.9

64.0

58.0

52.6

47.8

43.4

560

101.6

90.8

81.6

73.6

66.6

60.5

55.0

50.1

45.6

570

104.8

93.8

84.4

76.3

69.2

62.9

57.3

52.3

47.8

580

107.9

96.8

87.2

78.9

71.7

65.3

59.6

54.5

49.9

590

110.0

99.7

90.0

81.5

74.2

67.7

61.9

56.7

52.0

600

114.0

102.5

92.6

84.0

76.5

69.9

64.0

58.8

54.0

610

117.0

105.3

95.2

86.5

78.9

72.1

66.2

60.8

56.0

620

120.0

108.0

97.8

88.9

81.2

74.4

68.3

62.8

58.0

630

122.9

110.7

100.4

91.3

83.5

76.6

70.4

64.8

59.9

640

125.7

113.4

102.9

93.7

85.8

78.7

72.4

66.8

61.7

650

128.6

116.1

105.4

96.1

88.0

80.8

74.4

68.7

63.6

660

131.4

118.7

107.8

98.3

90.1

82.8

76.3

70.6

65.3

670

134.2

121.2

110.2

100.6

92.2

84.8

78.3

72.4

67.1

680

136.9

123.8

112.6

102.9

94.3

86.8

80.2

74.2

68.9

690

139.6

126.3

115.0

105.1

96.4

88.8

82.1

76.0

70.6

700

142.3

128.8

117.3

107.3

98.5

90.8

83.9

77.8

72.3

710

144.9

131.3

119.6

109.4

100.5

92.7

85.7

79.5

73.9

720

147.5

133.7

121.8

111.5

102.5

94.6

87.5

81.2

75.5

730

150.1

136.1

124.0

113.6

104.5

96.5

89.3

82.9

77.1

740

152.7

138.5

126.2

115.7

106.5

98.3

91.1

84.5

78.7

750

155.3

140.8

128.5

117.8

108.4

100.1

92.8

86.1

80.3

760

157.8

143.1

130.6

119.7

110.3

101.9

94.4

87.8

81.7

770

160.2

145.4

132.7

121.7

112.1

103.6

96.0

89.3

83.2

780

162.6

147.6

134.8

123.7

113.9

105.3

97.6

90.8

84.7

790

165.1

149.9

136.9

125.6

115.7

107.0

99.2

92.3

86.1

800

167.5

152.1

138.9

127.4

117.4

108.6

100.8

93.8

87.4

APPENDIX 5 TO FOURTH SCHEDULE

PLEASURE YACHTS UNDER 45 FEET IN LENGTH — ASCERTAINMENT OF TONNAGE

1. Tonnage in relation to any pleasure yacht to which Part IV of this schedule applies shall be measured in terms of cubic capacity.

2. (1) The tonnage of the yacht shall be the sum of:

( a ) the product of multiplying together its overall length, breadth and depth, and multiplying the resultant figure by 0.0045; and

( b ) the tonnage of any break or breaks defined in paragraph 3 and calculated in accordance with the provisions of that paragraph.

(2) The breadth of a yacht for this purpose shall be its extreme breadth over the outside plating, planking or hull, no account being taken of rubbers or fenders even if they are moulded so as to be integral with the hull.

(3) ( a ) The depth of a yacht for this purpose shall be measured vertically midway between the foremost and aftermost points of measurement of its length.

( b ) The upper terminal point depth shall be—

(i) in the case of a decked yacht, the underside of deck on the middle line or, if there is no deck at the middle line at the point of measurement, the underside of the deck at side of the yacht plus the full deck camber;

(ii) in the case of an open yacht, the top of the upper strake or gunwhale.

( c ) The lower terminal point for depth shall be:

(i) in the case of a wooden yacht, the upper side of planking at side of keel or hog;

(ii) in the case of a metal yacht, the top of plating at side of keel;

(iii) in the case of glass reinforced plastic yacht, the inside of hull.

Where no keel member is fitted and the keel is of open trough construction, the lower terminal point for depth shall be the top of the keel filling, if fitted, or the level at which the inside breadth of the trough is 4 inches, whichever gives the lesser depth.

( d ) Where a break exists in way of the point of measurement for depth, the height of the break shall not be included in the measurement of depth.

3. A break for the purpose of paragraph 2(1)(b) shall be a side break existing in the line of the deck, and its tonnage shall be the figure obtained by multiplying together the mean length, mean breadth and mean height of the break and dividing the product by 100.

4. In the case of a catamaran or trimaran the tonnage of each hull shall be measured separately, using the breadth of each hull for the purposes of its measurement, and the sum of such tonnages shall be the tonnage of the yacht.

5. All measurements shall be taken and expressed in feet and decimals of 1 foot to the nearest one-tenth of 1 foot.

6. Tonnage shall be expressed to two decimal places, the second decimal place being increased by 1 if the third decimal place is 5 or more.

GIVEN under my Official Seal this 31st day of December, 1984.

JAMES MITCHELL

Minister for Communications.

EXPLANATORY NOTE.

These Regulations revoke the Merchant Shipping (Tonnage) Regulations, 1967 (SI.I No. 213 of 1967) and re-enact those provisions in the Fourth Schedule and Appendices 1 to 5 thereto.

The Regulations give effect to the International Convention on Tonnage Measurement of Ships, 1969. Part II applies to new Irish registered ships and certain existing ships of 24 metres in length and over from 18th July, 1982 (other than fishing boats registered only under Part IV of the Merchant Shipping Act, 1894 ). Such existing ships are those which have undergone alterations or modifications which result in a substantial variation in their existing gross tonnage or they are existing ships which the owner requests should be measured in accordance with Part II requirements (Regulation 3).

Provision is made for net and gross tonnages to be measured in accordance with the Regulations (Regulations 4 to 7) and for the Minister or an authorised certifying authority to issue or cancel tonnage certificates (Regulations 9 and 10).

Where segregated ballast tanks complying with the International Convention for the Prevention of Pollution from Ships 1973 are provided in oil tankers, including combination carriers, an entry may be made on the International Tonnage Certificate (1969) in accordance with the International Maritime Organisation Resolution A388(X) indicating the total tonnage of those tanks (Regulation 8(1)).

Existing ships and new ships of less than 24 metres in length including pleasure yachts registered under the Mercantile Marine Act, 1955 and fishing boats registered under the Mercantile Marine Act, 1955 and Part IV of the Merchant Shipping Act, 1984, will continue to have their tonnages ascertained in accordance with the provisions of the Regulations as set out in the Fourth Schedule and Appendices 1-5 thereto (Regulation 12). Existing ships of 24 metres in length and over, as specified, will continue to have their tonnages ascertained in accordance with the Regulations as set out in the Fourth Schedule and Appendices thereto.

The treatment of foreign ships whilst within the State or the territorial waters thereof, is dealt with in Part V of the Regulations and provides for the inspection of their tonnage certificate. (Regulation 14).

The Regulations also implement the Interim Scheme for the Tonnage Measurement for Certain Ships, adopted by the International Maritime Organisation in Resolution A.494 (XII). This Scheme permits the use of gross tonnage ascertained in accordance with the provisions of the Regulations as set out in the Fourth Schedule and Appendices thereto to be used for the application of the provisions of regulations made under the International Convention for the Safety of Life at Sea, 1974 and the Protocol of 1978 thereto. (Regulation 16).
